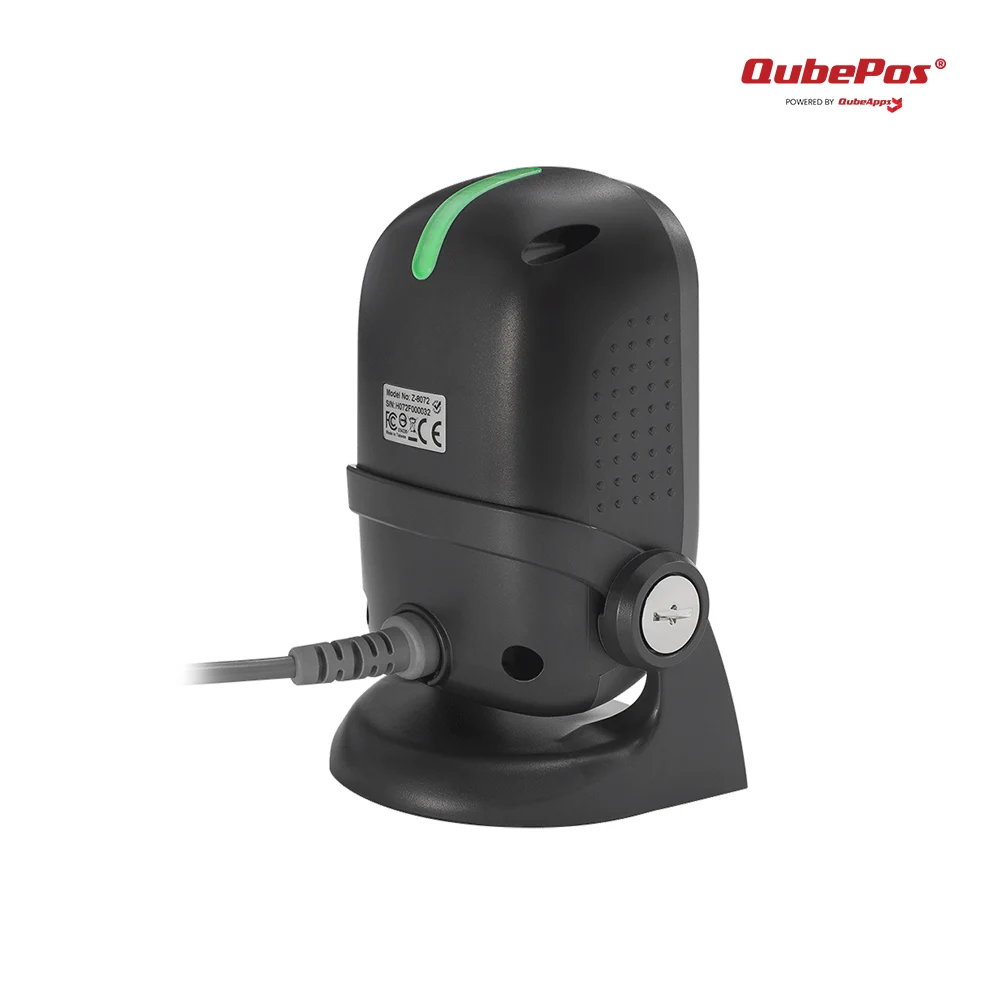

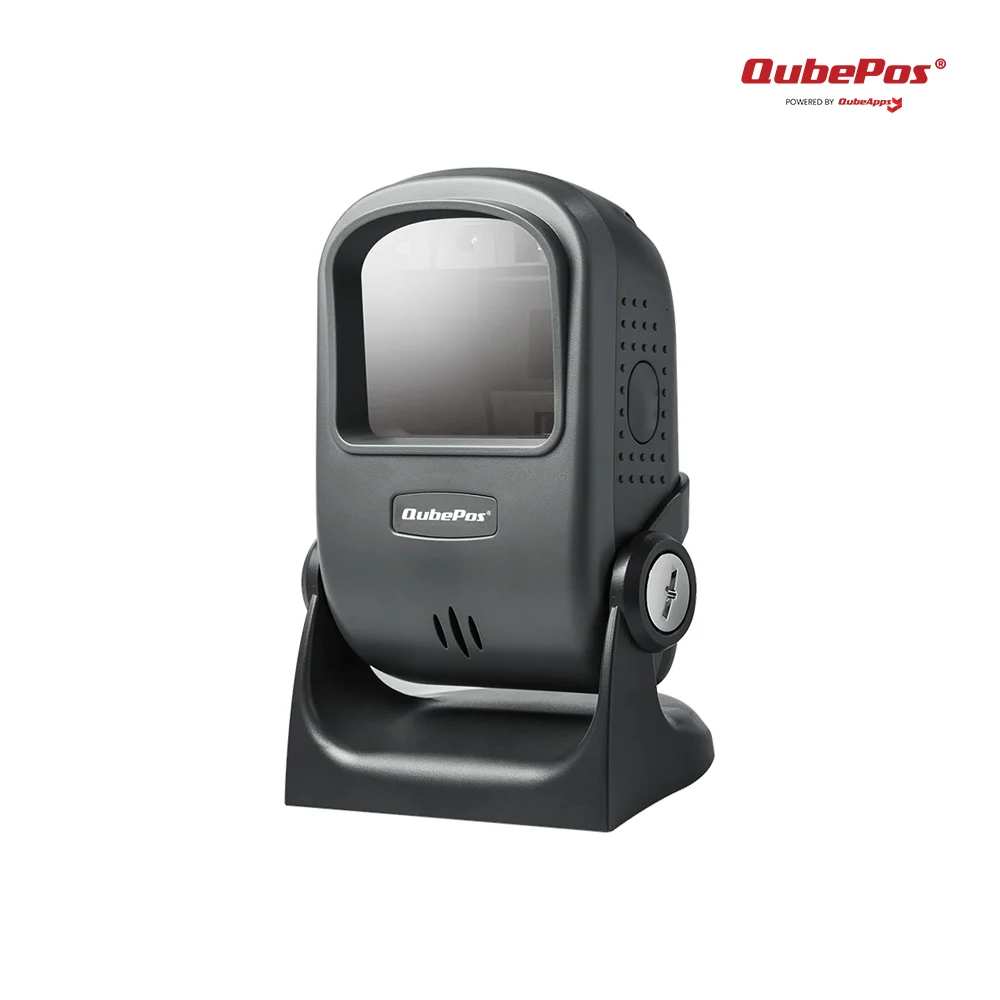

The QubePos Z-8072 provides top performance and reliability with great features. This powerful and compact 2D imager excels at reading barcodes on smartphone screens and barcodes that are poorly printed. The Z-8072 is the perfect solution for a space-constrained environment.
| QubePos Z-8072 Ultra Scanner | |
|
Operational |
Aiming Element: 617 nm LED |
| Illumination Element: 617 nm LED | |
| Optical System: 1280H×800V pixels (1.0M) | |
| Scan Angle: 44.4° horizontal; 29.1° vertical | |
| Depth of Field: Code39 (5 mil): 0 – 50 mm EAN13 (13 mil): 0 – 210 mm (Note: DOF may vary depending on environment condition and barcode quality.) | |
| Min. Bar Width: 6.8 mil (PDF 417), 5 mil (Code 39) | |
| Print Contrast: 30% @ UPC/EAN 100% | |
| Indicator: Color LED | |
| Programmable Operation: Scan Mode, Beeper tone | |
| System Interface: RS-232, USB | |
|
Physical |
Dimension: 145.0 × 80.2 × 97.0 mm |
| Weight: 250 g | |
|
Power |
Input Voltage: 5 VDC ±10% |
| Operating Current: 280 mA typical | |
|
Regulatory |
EMC: CE, FCC, VCCI, BSMI |
| Safety: IEC 62471 Exempt | |
|
Environmental |
Operating Temperature: 0°C – 50°C (32°F – 122°F) |
| Storage Temperature: -40°C – 70°C (-40°F – 158°F) | |
| Humidity: 5% – 95% RH (non-condensing) | |
| Drop Durability: Designed to withstand 1M drops | |
|
Decoding Ability |
1D Barcode: UPC/EAN [UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland), ISSN, Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Matrix 2 of 5, Code11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked) |
| 2D Barcode: PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C) , Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro) |
