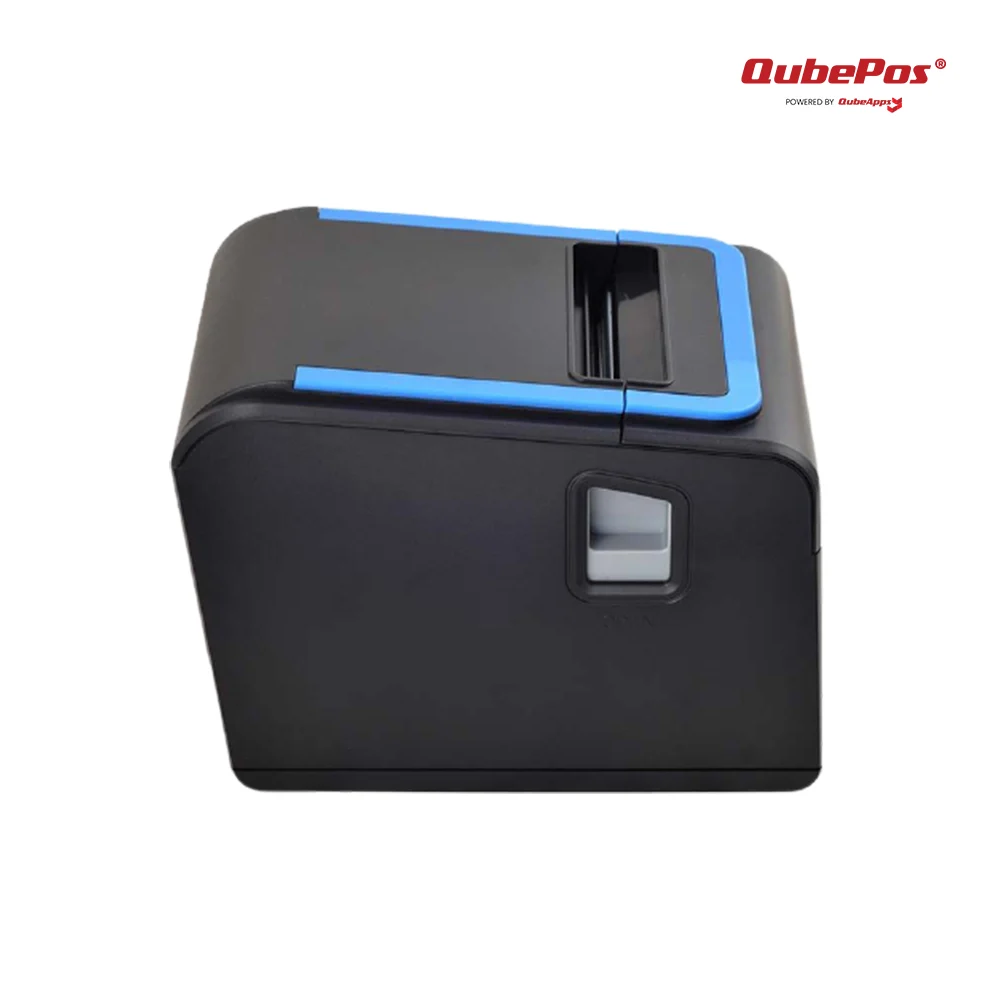

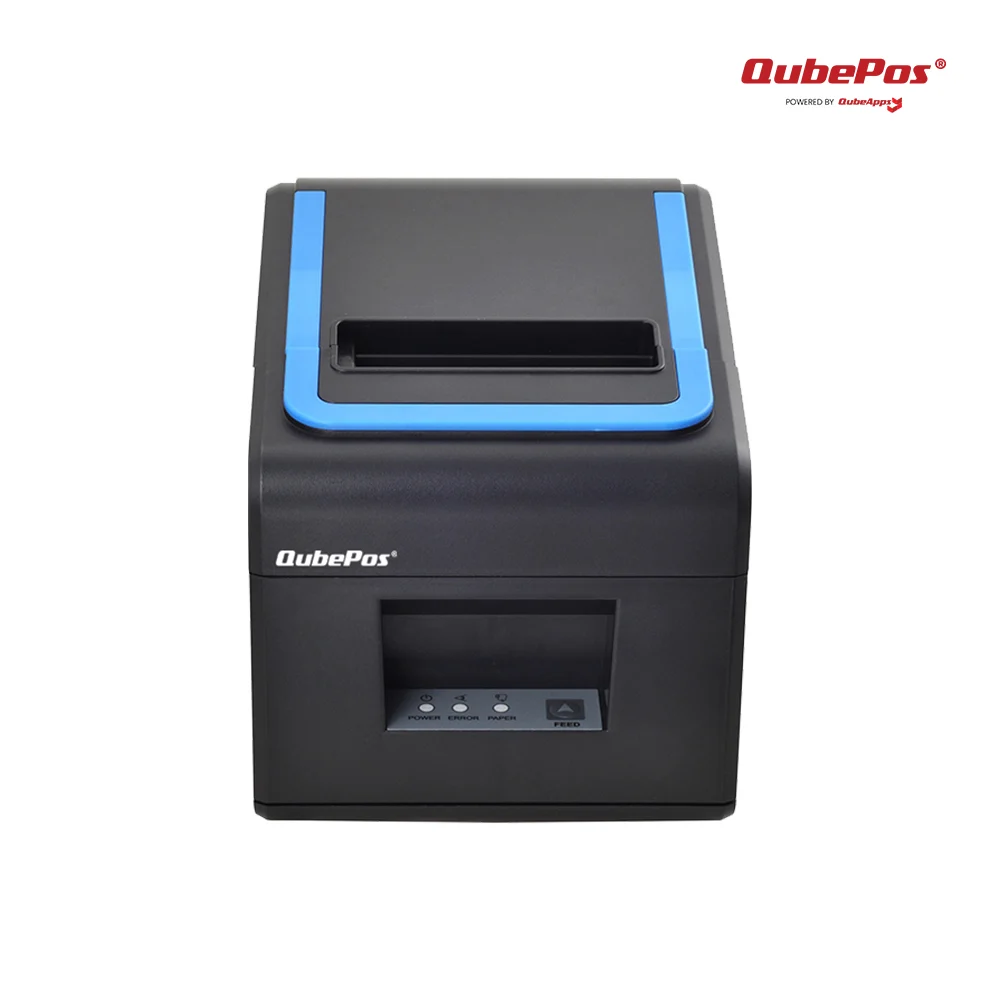

The QubePos V320M is a low-cost thermal receipt printer that offers industryleading speed, reliability and longevity. The V320M has an Ethernet connection that allows quick and easy connections to the network. It also includes a number of high-quality utilities that will enhance retail and hospitality in POS applications.
| QubePos V320M Thermal Printer | |
|
Printing |
Printing method: Direct Thermal |
| Paper width: 79.5 ± 0.5mm | |
| Print width:72mm | |
| Column capacity: 576 dots/line (adjustable by command) | |
| Printing speed: 200mm/s | |
| Interface: USB+Serial / USB+LAN /USB+Bluetooth | |
| Printing paper: 79.5±0.5mm | |
| Line spacing: 3.75mm (Adjustable by commands) | |
| Column number: 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/Chinese,traditional Chinese – 21 columns or 24 columns | |
| Character size: ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | |
| Cutter | Auto cutter: Partial |
|
Barcode Character |
Extension character sheet: PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC86 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251) |
| Barcode types: UPC-A/UPC E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D barcode: QR code, PDF417 | |
|
Buffer |
Input buffer: 128k bytes |
| NV Flash: 256k bytes | |
|
Power |
Power adaptor: Input：AC 110V/220V, 50～60Hz |
| Power source: Output：DC 24V/2.5A | |
| Cash drawer output: DC 24V/1A | |
|
Reliability |
Cutter life: 1.5 million cuts |
| Printer head life: 100KM | |
|
Physical characteristics |
Weight: 1.05 KG |
| Dimensions: 190×140×136mm ( D×W×H) | |
|
Environmental Requirements |
Work environment: Temperature (0～45) humidity(10～80%) |
| Storage environment: Temperature(-10～60℃) humidity(10～80%) | |
|
Software |
Emulation: ESC/POS |
| Driver: Windows/JPOS/ OPOS/Linux/Android/Mac | |
| Utility: Windows & Linux test Utility | |
| SDK: iOS/ Android/Windows |
