Hardware That Keeps You Moving
From sleek terminals to fast receipt printers, all seamlessly integrated with QubePos to keep lines moving and customers happy.
From sleek terminals to fast receipt printers, all seamlessly integrated with QubePos to keep lines moving and customers happy.

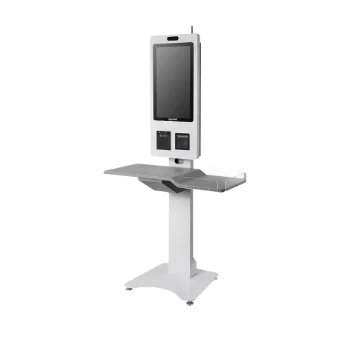

The TJ Series Self Check-out Kiosk comes with a 21.5-inch HD LCD screen offering high resolution; 1920px X 1080px. This All-in-One design includes a built-in 80mm thermal receipt printer, barcode and QR scanner, camera, and payment terminal bracket. It can be installed either wall-mounted or floor-standing.
| QUBEPOS SELF-ORDER KIOSK TJ215/ 10.1″ DISPLAY | ||
| Screen Size | 21.5inch LCD Screen with touch | |
| Resolution | 1920*1080 | |
| Brightness | 220cd/m² | |
| Touch Type | 10 point capacitive touch screen | |
| OS | Windows 10 Pro English Trail Version | |
| CPU | i5 5th | |
| Memory | 8GB | |
| SSD | 128GB | |
| Printer | Built in 80mm thermal receipt printer with auto cutter | |
| Scanner | Built in QR and barcode scanner | |
| I/O | USB 2.0 x4 + COM x1 + LAN x1+ DC x1 | |
| Wifi and BT | Built in Wifi | |
| Speaker | Built in Speaker | |
| Color | Black and Silver | |
| Plug | UK Plug | |
| Installation | Floor Standing installation with Tray | |
| Specification | ||
| Part No. | TJ Kiosk-W（Windows or Linux OS） | TJ Kiosk-A（Android OS） |
| Processors | Intel J1900 (i3/i5/i7 optional) | RK3288(RK3568/RK3399 optional) |
| Momory | DDR3 4GB(DDR4 8GB/16GB Optional) | 2GB RAM (4GB/8GB Optional) |
| Storage | MSATA 64GB (128GB/256GB/512GB Optional) | MSATA 16GB (32GB/64GB/128GB Optional) |
| Operating Systems | Windows 7/10/11 & Linux Ubantu/CentOS | Android 7.1/Android 9.0/Android 11.0 |
| Ethernet(Audio) | Realtek 8103EL 10/100M Support diskless boot | Realtek 8103EL 10/100M Support diskless boot |
| Main screen | 21.5inch or 24inch or 27inch LCD screen with touch | 21.5inch or 24inch or 27inch LCD screen with touch |
| Resolution | 1920*1080 | 1920*1080 |
| Brightness | 220cd/m2 | 220cd/m2 |
| Touch Screen | True flat capacitive touch screen, multi-touch | True flat capacitive touch screen, multi-touch |
| RJ11 | 1 | 1 |
| USB 2.0 | 4 | 4 |
| LAN | 1×Gigabit Ethernet ,RJ 45 | 1×Gigabit Ethernet ,RJ 45 |
| SIM card slot | 1(Optional) | 1(Optional) |
| Power DC-IN | 1 | 1 |
| Power Supply | Adaptor 12V/5A | Adaptor 12V/5A |
| Printer | 80mm thermal receipt printer with Auto cutter | 80mm thermal receipt printer with Auto cutter |
| Scanner | Barcode and QR Scanner | Barcode and QR Scanner |
| Card REader | IC/ID/RFID/NFC Card Reader | IC/ID/RFID/NFC Card Reader |
| Speaker | Built-in 4Ω 3W high-fidelity speaker | Built-in 4Ω 3W high-fidelity speaker |
| Wifi | 802.11a/b/g/n | 802.11a/b/g/n |
| Bluetooth | Standard configuration none(Optional) | Bluetooth 4.0 |
| Operating Temperature | 0 °C ~ 40 °C at 20% to 90% Humidity | 0 °C ~ 40 °C at 20% to 90% Humidity |
| Storage Temperature | -20 °C ~ 70 °C at 10% to 90% Humidity | -20 °C ~ 70 °C at 10% to 90% Humidity |
| Wall mounted Kiosk Packing Dimension(W×H×D) | 21.5inch:960*490*210mm 24inch:1000*510*210mm 27inch:1120*560*210mm | 21.5inch:960*490*210mm 24inch:1000*510*210mm 27inch:1120*560*210mm |
| Floor Standing Packing Dimension(W×H×D) | 1660*320*80mm and 550*460*100mm | 1660*320*80mm and 550*460*100mm |
| Wall mounted Kiosk Packing Weight | 21.5inch:18.4KG 24inch:20KG 27inch:22KG | 21.5inch:18.4KG 24inch:20KG 27inch:22KG |
| Floor Standing Packing Weight | 26KG | 26GK |
| Certification | CE,FCC,RoHS,UKCA | CE,FCC,RoHS,UKCA |
| Color | White | White |
| Installation Method | Wall mounted or Floor standing | Wall mounted or Floor standing |
