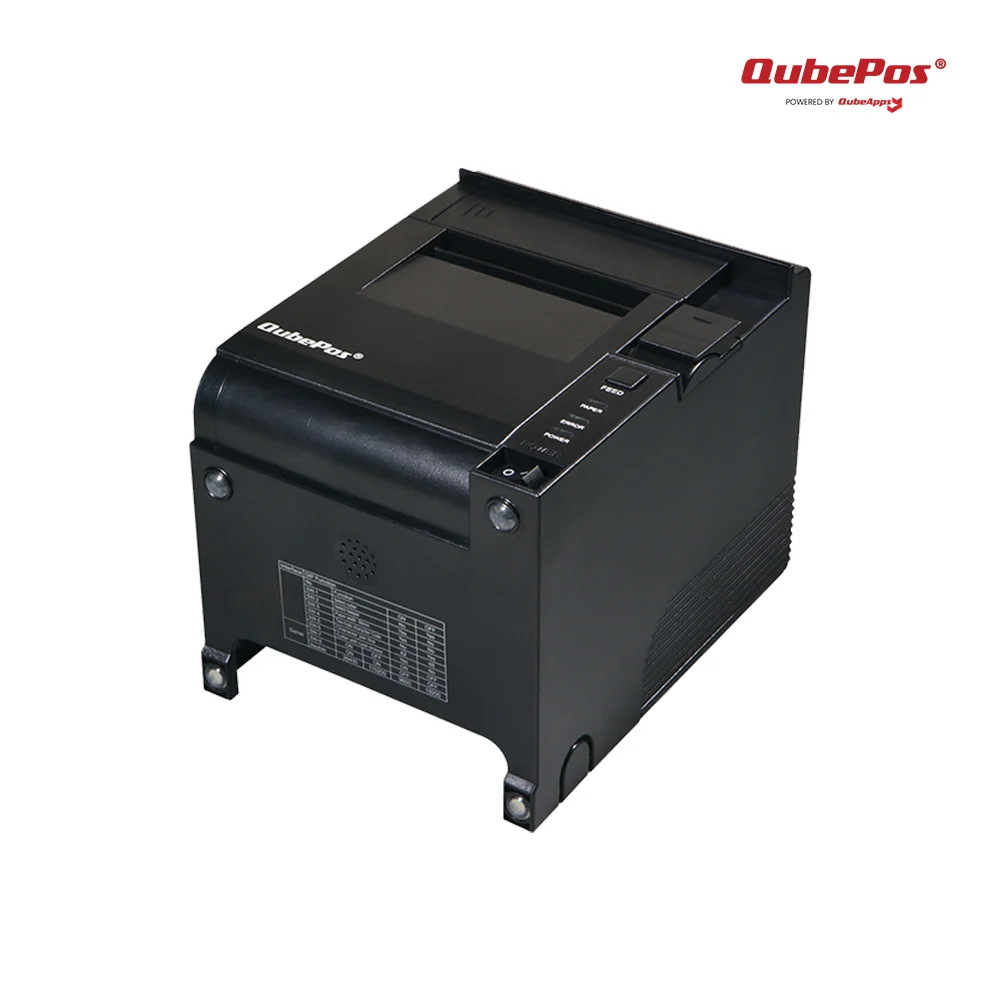

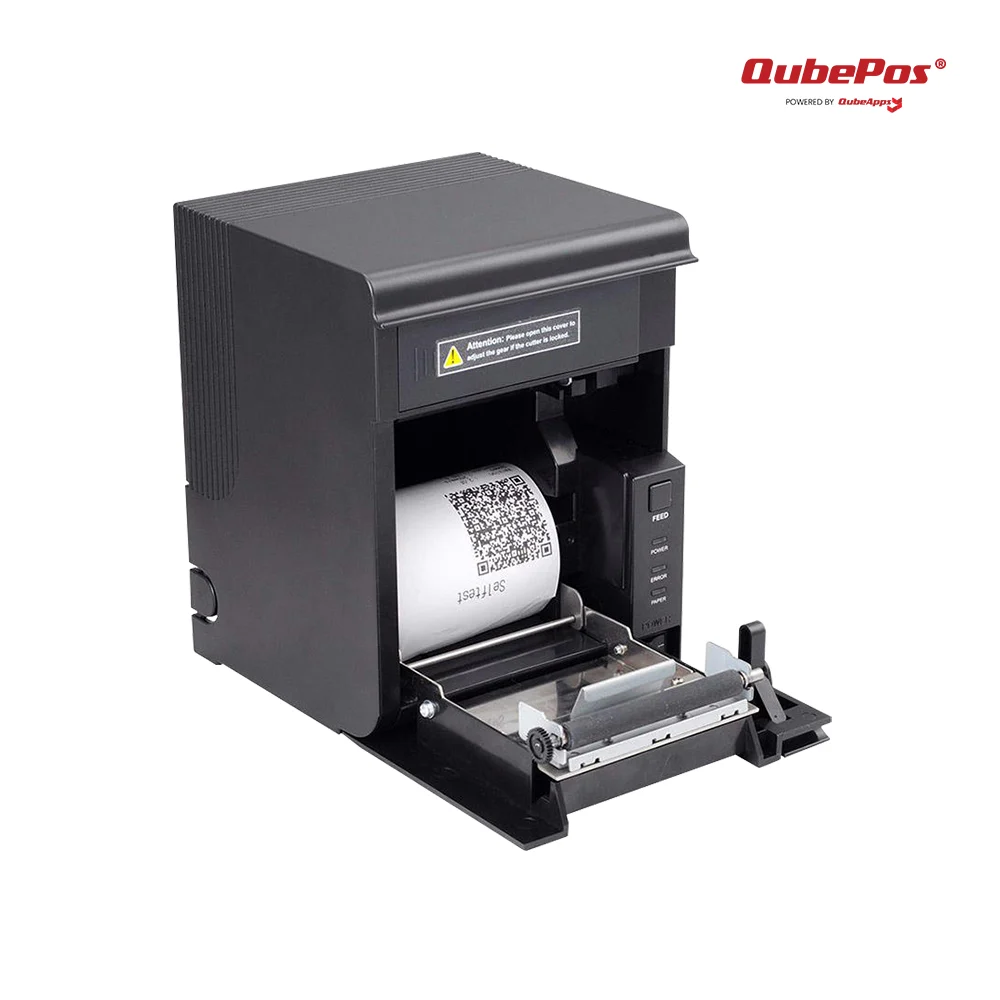

The QubePos D300M thermal receipt printer is a high-speed thermal receipt printer designed for repetitive tasks in limited operating time applications, especially for retail stores and fast-food applications. With the reliable printer module, it can print for prolonged durations while keeping the printing noise to a minimum. Along with a multi I/O Interface, D300M is the best choice for high-quality demand solutions.
| QubePos D300M Thermal Printer | |
|
Printing |
Printing method: Direct thermal |
| Paper width: 79.5±0.5mm Φ80mm | |
| Print width: 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | |
| Column capacity: 576 dots/line(adjustable by command) | |
| Printing speed: 300 mm/s Max. | |
| Interface: USB+Serial+Lan | |
| Line spacing: 3.75mm (Adjustable by commands) | |
| Column number: 80mm paper: Font A – 42 columns or 48 columns/Font B – 56 columns or 64 columns/Chinese,traditional Chinese – 21 columns or 24 columns | |
| Character size: ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | |
| Cutter | Auto cutter: Partial |
|
Barcode Character |
Extension character Sheet: PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC86 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251) |
| Barcode types: UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D Barcode: QR Code / PDF417 | |
| Input buffer: 2048 Kbytes | |
| NV Flash: 256 Kbytes | |
|
Power |
Power adaptor: Input: AC110V/240V、50~60Hz Output: DC 24V/2.5A |
| Printer input: DC 24V/2.5A | |
| Cash drawer: DC 24V/1A | |
|
Physical characteristics |
Weight: 1.44KG |
| Dimensions: 144.5×146×188.5mm ( D×W×H) | |
|
Environmental Requirements |
Operation environment: Temperature :0～45℃ humidity: RH 10～80% |
| Storage environment: Temperature: -10～60℃ humidity: RH 10～90% | |
|
Reliability |
Cutter life: 1.5 million cuts |
| Printer head life: 150 KM | |
|
Software |
Emulation: ESC/POS |
| Driver: Windows/JPOS/Linux/Android/Mac/ OPOS | |
| Utility: Windows & Linux test Utility | |
| SDK: iOS/Android/Windows |
