Hardware That Keeps You Moving
From sleek terminals to fast receipt printers, all seamlessly integrated with QubePos to keep lines moving and customers happy.
From sleek terminals to fast receipt printers, all seamlessly integrated with QubePos to keep lines moving and customers happy.

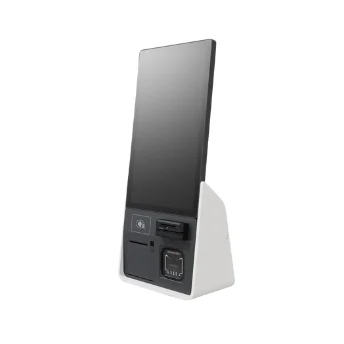

MAZIC K-2150 not only achieves excellent performance by applying Android OS and Intel’s 12th generation CPUs, but also has a compact and aesthetic design that can be installed on a table and naturally used as an interior item. It is a kiosk that can be installed with a 21.5-inch display without compromising the aesthetics of the store and has excellent functionality.
| MAZIC K-2150 | |||
|
System |
Processors | Intel® Celeron® J6412 (1.5M Cache, 2.0/2.60 GHz) Intel® Processor N97 6M Cache, up to 3.60 GHz Intel® Core™ i3-1215U Processor 10M Cache, up to 4.40 GHz Intel® Core™ i5-1235U Processor 12M Cache, up to 4.40 GHz | RK3399 Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
| Chipset | Intel® Elkhart Lake Intel® Alder Lake | ||
| Memory | 4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 32GB) | 4GB Standard, DDR4, On-board | |
| Storage | 1. Form Factor NVME M.2 2242-D2-M (No capacity limit.) 2. Mountable quantity: Up to 2 units can be installed. * Factory Default : NVMe M.2 2242 128GB x 1 | eMMC 32GB, On-board (Max.64GB) | |
| Operating Systems | Windows 10 IoT Enterprise LTSC N97: Windows 10/11 version 21H1 or higher | Android 9.0/ 12 | |
| Audio | HD Audio Codec | ||
|
Display |
Type | 21.5” TFT LCD, LED Backlight | |
| Resolution | 1080 x 1920 | ||
| Brightness | 250 cd/m² (typ.) | ||
| Touchscreen | Projected Capacitive Touch | ||
| Response | 20 ms | ||
| Contrast Ratio | 3000 (typ.) | ||
|
Interface |
USB | External 6 (USB 3.0 x 2, USB2.0 x 4) Internal 4 (USB 2.0 x 4 (Reserved for MSR, SCR, Printer, MDS(Motion Detect Sensor) | External 2 (USB 2.0 x 2) Internal 6 (USB 3.0 x 2, USB 2.0 x 4 (Reserved for MSR, SCR, Printer, MDS(Motion Detect Sensor) |
| Serial | External 2[COM1,COM 2( RJ-45, Full Signal)] Internal 2 (COM3 Reserved for Printer), (COM4 TX/rx only, Reserved for SCR) | ||
| LAN | RJ-45, Ethernet(10/100/1000M) | ||
| Power DC-IN | 3 Pin DIN Jack | ||
| Power | Power Supply | Adaptor 24V, 6.35A | |
|
Pedestal |
Material | Galvanized Steel Plate | |
| Material Thickness | 1.2T | ||
| Component Access | TBD | ||
|
Physical & Environmental |
Operating Temperature | e 0 °C ~ 60 °C at 10% to 90% Humidity | |
| Storage Temperature | -20 °C ~ 60 °C at 10% to 90% Humidity | ||
| Dimensions (W x H x D) | System : 333 x 750 x 198.65 (mm), 13.11 x 29.53 x 7.82 (in) Pedestal : 220 x 890 x 115 (mm), 8.66 x 35.03 x 4.53 (in) Baseplate : 480 x8 x 380 (mm), 18.90 x 0.31 x 14.96 (in) | ||
| Packing Dimensions (W x H x D) | TBD | ||
| Net Weight | System : 10,700g, 23.59 lbs Pedestal : 8,000g, 17.63 lbs Baseplate : 10,000g, 22.04 lbs | ||
| Packing Weight | TBD | ||
| Certification | TBD | ||
| Color | White | ||
|
Options |
Storage | – | |
| Built-in Printer | 3” Jam-Free Thermal, Max. 250mm/s, Auto Cutter (Interface : Serial, USB) | ||
| Barcode Scanner | 1D, 2D Barcode | ||
| Camera | 5M USB Interface (With Mic, Internal) (Factory Option) | ||
| Magnetic Stripe Reader | Comply with ISO 7811, Support 1 & 2 & 3 Track | ||
| Smart Card Reader | EMV Level 1 | ||
| NFC Reader | MIFARE, FeliCa, ISO/IEC 14443A, ISO/IEC 14443B, ISO/IEC 15693 | ||
| Wall Mount Kit | TBD | ||
| Speaker | 1 x 5W (Mono) | ||
| WiFi | M.2 for WiFi/BT | ||
| Bracket Payment | EFT Terminal Bracket option | ||
