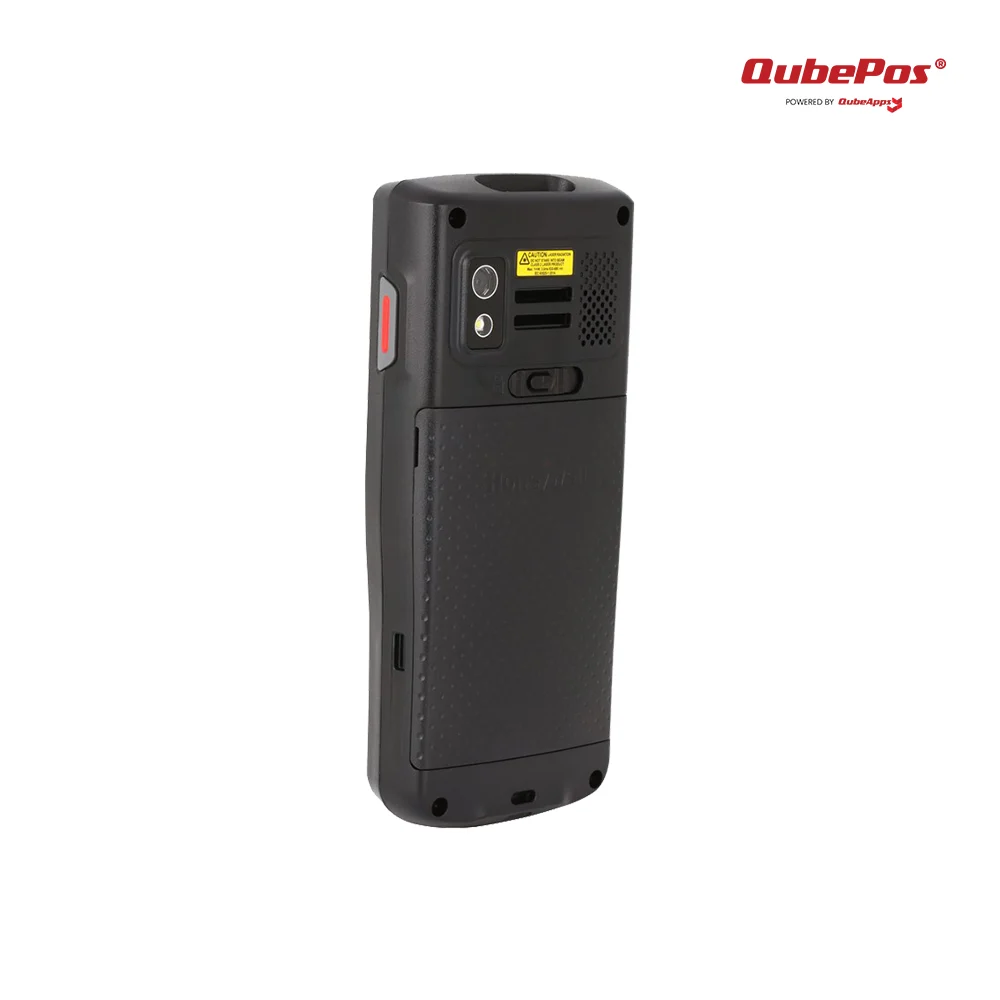

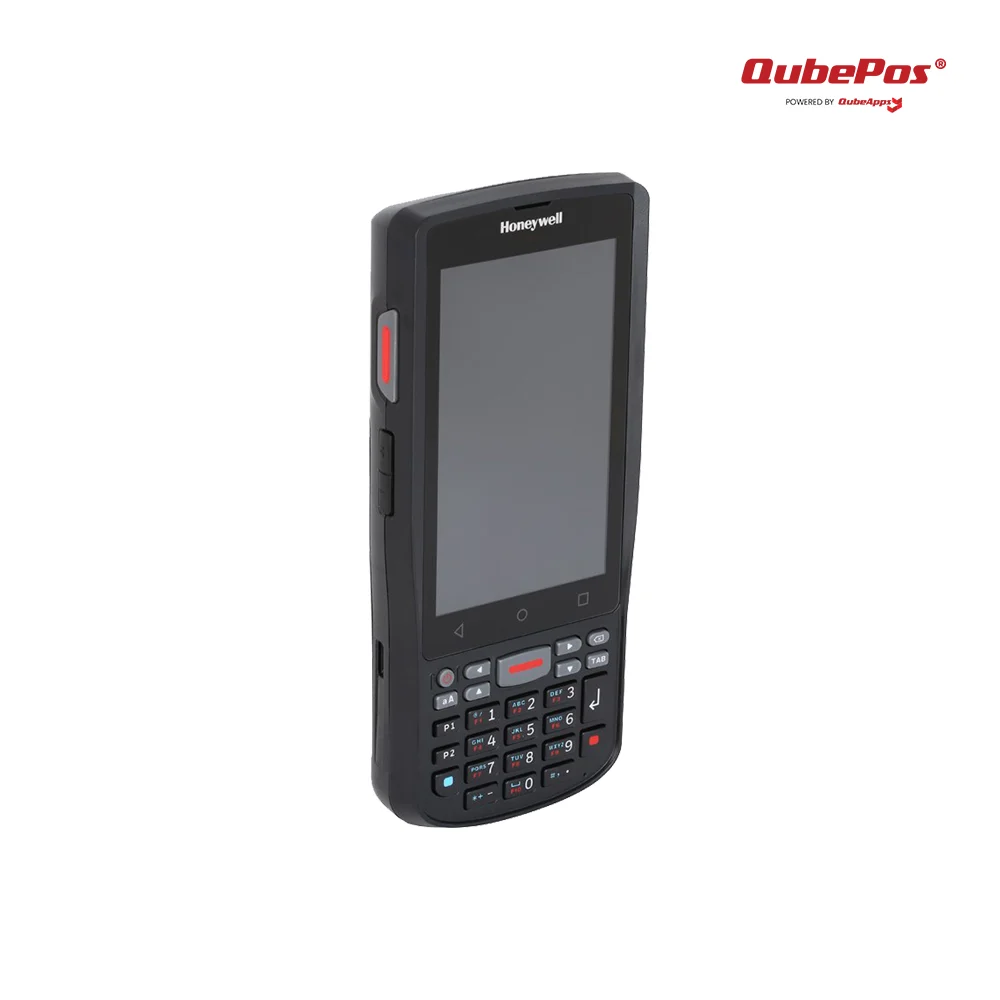

The EDA51K is a durable, cost-effective device for light-duty warehouses, retail, and delivery. It features a keyboard, Qualcomm® Snapdragon™ 1.8 GHz octa-core processor, Android 10, up to 4 GB RAM, 64 GB storage, and the Honeywell N6703 scan engine. The 13-megapixel camera captures high-quality images in dim light. Rated IP65, it resists dust and water and withstands drops. The device includes a 4-inch touchscreen, numeric keypad, and scan buttons for both left and right
handed users
| Honeywell Scanpal EDA51K Enterprise Mobile Computer | |
|
Mechanical |
Dimensions: |
| 164 mm x 73 mm x 24.5 mm (6.5 in x 2.9 in | |
| x 1.0 in) | |
| Weight: 300g (10.6 oz) with battery | |
| Display: 10.6 cm (4-inch) | |
| Resolution: WVGA 480 x 800 | |
| Type: Transmissive | |
| Backlight: LED | |
| Touchscreen: Multi-touch capacitive | |
| Keyboard: 26-key numeric main keypad; | |
| side keys: volume up/down, right and left | |
| scan keys; soft keys: 3 touch keys (Back, | |
| Home, Menu) | |
|
ENVIRONMENTAL |
Operating Temperature: |
| -10°C to +50°C (14°F to 122°F) | |
| Storage Temperature: | |
| -20°C to +60°C (-4°F to +148°F) | |
| Humidity: 10% to 90% (non-condensing) | |
| Drop: 1.5m MIL drop cross operation | |
| temperature | |
| Electrostatic Discharge (ESD): | |
| ±8 kV direct; ±12 kV air | |
| Environmental Sealing: IP65 | |
| Vibration: Vertical rms = 1.04 g, Transverse; | |
| rms = 0.2 g, Longitudinal rms = 0.74 g | |
|
PERFORMANCE |
Processor: Qualcomm 1.8 GHz octa-core |
| Memory: 3G/32G, 4G/64G Optional | |
| Operating System: Android 10 with Google | |
| Mobile Services | |
| Expansion Memory: MicroSDHC (up to 128 | |
| GB) | |
| PC Communication: Type-C USB2.0 | |
| Battery: 4000 mAh @ 3.8 V | |
| Camera: 13-megapixel color camera with | |
| autofocus and LED flash | |
| GPS: GNSS Receiver for GPS, GLONASS and | |
| Compass (Beidou) (for WWAN only) | |
| Button Batteries: 22 mF super-cap | |
| Real-Time Clock: 10-min backup via super- | |
| cap | |
| Charging Time: 4 hours | |
| Battery Runtime: 12 hours+ | |
| Engine: 1D/2D: S0703, N3603 optional | |
| LEDs: | |
| LED | |
| Scan Indication: Red/Green light | |
| Vibration: Vibration Motor | |
| Sensors: Proximity, Light, Acceleration | |
|
WIRELESS CONNECTIVITY |
WLAN: IEEE 802.11 a/b/g/n/ac radio, Wi-Fi |
| certified 802.11 a/b/g/n/ac | |
| WLAN Security: Open, WEP, WPA/WPA2- | |
| PSK, PEAP, EAP-TLS, EAP-TTLS, EAP- | |
| PWD,EAP-SIM,EAP-AKA | |
| WWAN* | |
| GSM & EDGE: Band2/3/ 5/8 | |
| WCDMA: Band1/2/4/5/ 6/8/ 9/ 19 | |
| FDD-LTE: Band1/ 2/ 3/ 4/ 5/ 7/ 8/ 9/ 12/ | |
| 13/ 17/19/20/ 25/ 26/ 28/30/66 | |
| TDD-LTE: Band38/39/40/41(2555~2655) | |
| Bluetooth: Bluetooth® Class 4.2 | |
| NFC: Integrated Near Field Communication | |
|
ACCESSORIES (STANDARD) |
USB Communication Cable: Type-C USB |
| 2.0, (communicates to PC, supports | |
| adapter/USB charging) | |
| Wall Adapter | |
|
ACCESSORIES (OPTIONAL) |
Hand Strap |
| Replacement Battery | |
| Single Charging Cradle: for 1x terminal | |
| charging | |
| Quad Battery Charger: for 4x batteries | |
| charging | |
| USB Wall Adapter: 5V/2A | |
| WARRANTY | One-year factory warranty |
