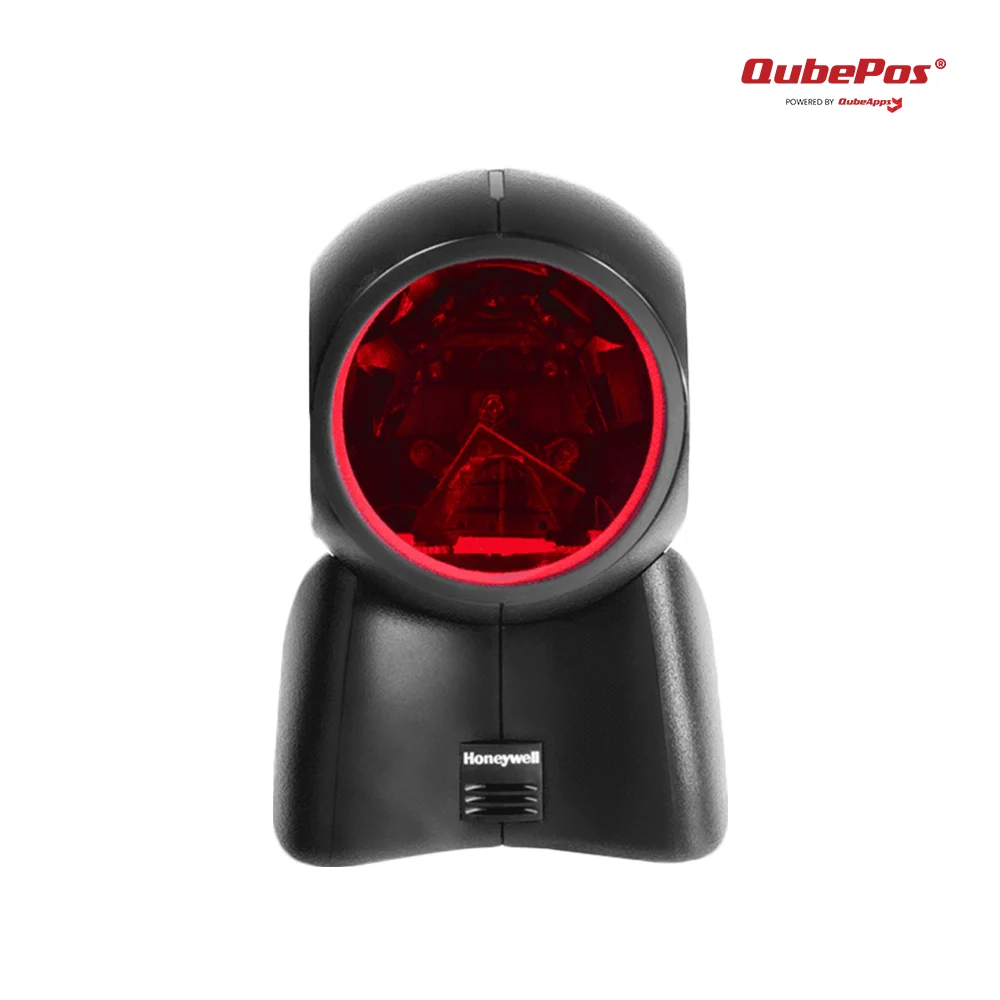

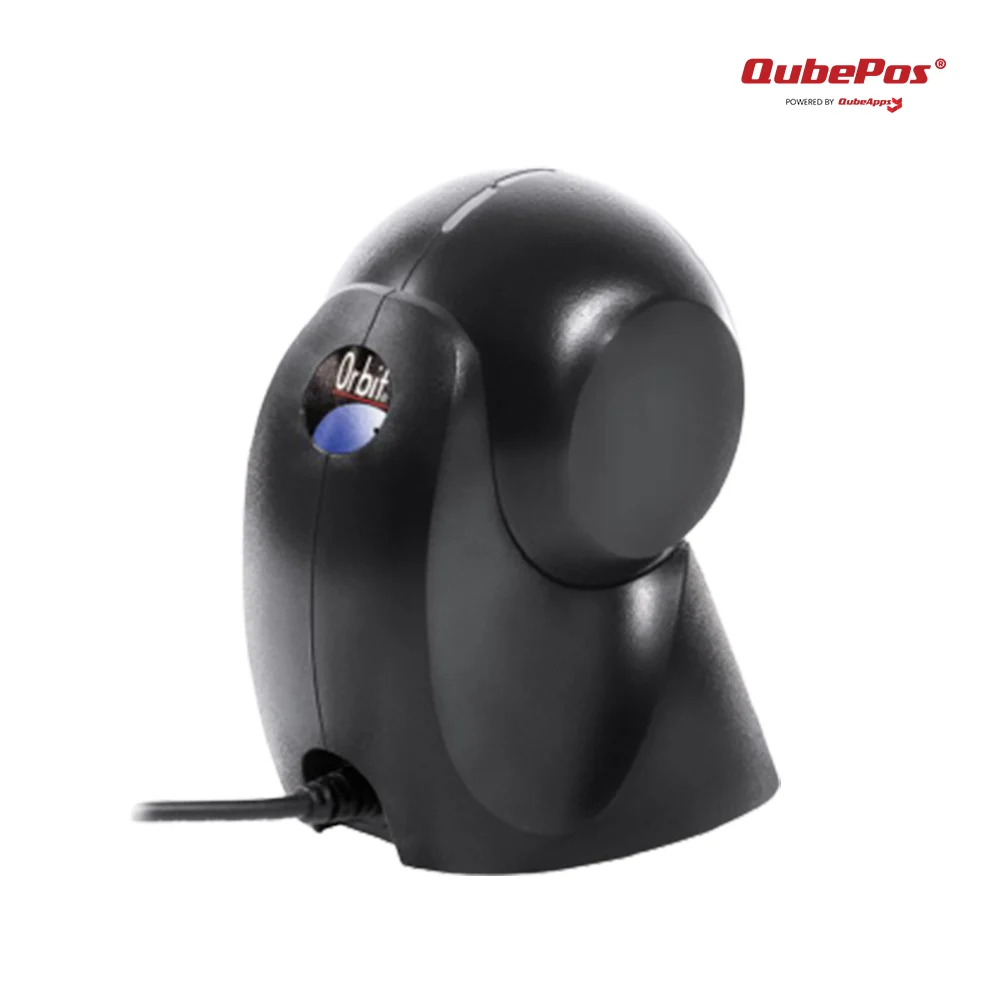

The Honeywell Orbit 7190G Hybrid Presentation Scanner is designed for highly efficient retail checkouts with a unique dual-mode design to scan both merchandise and digital barcodes seamlessly. Its incorporated breakthrough hybrid technology combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts.
| HONEYWELL 7190G ORBIT SCANNER (2D) | |
| FEATURES | Features: Multi-Interface Design Dual Working Modes Laser-Imager Hybrid |
| Form Factor: Counter Top | |
| DIMENSIONS | Overall Dimensions: 10.8 x 10.3 x 14.8 cm 4.3 x 4.1 x 5.8 in |
|
ELECTRICAL |
Input Voltage: 5 VDC ±0.25 V |
| Operating Power: 472 mA @ 5 V | |
| Standby Power: 255 mA @ 5 V | |
| Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM468xx (RS485) | |
| EAS Features: EAS with interlock and integrated RF EAS antenna (EAS model) | |
|
ENVIRONMENTAL |
Storage Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) | |
| Humidity: 5% to 95% relative humidity, non-condensing | |
| Drop: Designed to withstand 1.2 m (4 ft) drops | |
| Environmental Sealing: Sealed to resist airborne particulate contaminants | |
| Light Levels Laser: 4842 Lux Imager: 100000 Lux | |
|
SCAN PERFORMANCE |
Scan Pattern: Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array) |
| Scan Speed Omnidirectional: 1120 scan lines per second FPS: 30 | |
| Scan Angle (Imager) Horizontal: 40.0° Vertical: 30.5° | |
| Symbol Contrast: 35% minimum reflectance difference | |
| Pitch, Skew Laser: 60°, 60° Imager: 60°, 70° | |
| Decode Capability Laser: Reads standard 1D, GS1 DataBar symbologies Imager: Reads standard 1D, PDF and 2D symbologies | |
|
HARDWARE |
Engine Type: Hybrid |
| Host System Interface: KBW RS-232 USB RS485 | |
| SERVICE TERMS | Warranty: Three-year factory warranty |
