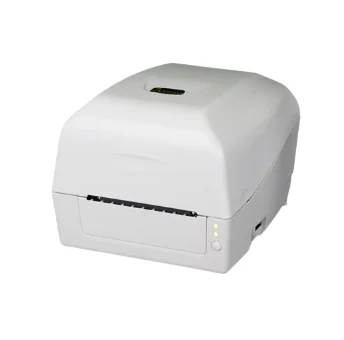

CX-2040 desktop printer is designed for efficiency, featuring a spill-resistant Shell Suit design that saves space and protects interfaces. With easy media loading, a durable build, and 20% faster print speeds than the CP series, it also offers expanded memory for storing more fonts, forms, and graphics, making it an ideal choice for streamlined daily tasks.
|
Print Specifications |
Printing Method | Direct Thermal & Thermal Transfer |
| Printing Resolution | 203 dpi (8 dots/mm) | |
| Printing Speed | Max. 6 ips | |
| Printing Length | Max. 100”(2540 mm) | |
| Printing Width | Max. 4.25”(108 mm) | |
| Memory | 32 MB SDRAM, 16MB Flash ROM | |
| CPU Type | 32 bit RISC microprocessor | |
|
Consumables Specifications |
Sensors | Reflective sensor x 1 (movable) & Transmissive sensor x 1 (Center fixed) |
| Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper | |
| Media | Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) Max. roll capacity (OD): 5″(127 mm) Core size 1”(25.4mm) Max. roll capacity (OD): 4.5″(114.3 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.7″(120 mm) Core size 1.5”(38.1mm) | |
| Ribbon | Ribbon width: 1”~4.33”(25.4mm~110mm), Ribbon length: Max. 300m. Core size ID: 1”(25.4mm), optional: 0.5”(12.7mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) | |
|
Fonts & Symbologies |
Fonts | Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24×24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font |
| 1D Barcodes | PPLA: Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 Random weight, Telepen, FIM, Interleaved 2 of 5 (Standard/with modulo 10 checksum / with human readable check digit/ with modulo 10 checksum & shipping bearer bars), and GS1 Data bar (RSS) PPLB: Code 39, UPC-A, UPC-E, Matrix 2 of 5, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code 128 UCC (shipping container code) , Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE 2/5 digit add-on, and GS1 Data bar (RSS) PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, and Logmars | |
| 2D Barcodes | PPLA: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, and Composite Codes PPLZ: QR code, PDF417, Data Matrix (ECC 200 only), and MaxiCode Composite Codes | |
| Graphics | PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP, Binary Raster, and GDI PPLZ: GRF, Hex and GDI | |
| Emulation | PPLA, PPLB, PPLZ | |
|
Interface Characterisitics and Integration |
Operation Interface | LED Indicator x 2, Button(Feed) x 1 |
| Communication Interface | USB device | |
| Drivers | Windows Driver for Windows Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver | |
| Software | BarTender, Printer Tool | |
| Database Link | Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) | |
|
Operating & Environment Characteristics |
Power Source | Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A |
| Operation Environment | Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) | |
| Agency Listing | CE, FCC, cULus, RoHS, BIS, BSMI, KC | |
|
Physical Characteristics |
Printer Dimensions | W 226mm x H 188mm x D 276mm |
| Printer Weight | 4.6 lbs (2.1 kg) | |
| Optional | Guillotine Cutter Rotary Cutter Peeler External media stand | |
